• Gray front bumper
• Rear bumper w/gray step pad
• Front air dam
• Gray upper front fascia
• Dark Gray grille
• Manual 6" x 9" black mirrors
• Tinted windows
• Variable speed intermittent windshield wipers
• Cargo lamp
• Removable tailgate

• HD vinyl 40/20/40 split bench seat
• Folding rear seat
• Mini floor console
• Black vinyl floor covering
• Tilt steering column
• Sentry Key theft deterrent system
• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Tire pressure monitor
• Black instrument panel bezel
• Pwr accessory delay
• AM/FM stereo w/CD player-inc: (4) speakers
• Auxiliary audio input jack
• Fixed long mast antenna
• Air conditioning
• Day/night rearview mirror
• Cigar lighter
• 12V pwr outlet
• Passenger assist handle
• Rear underseat storage compartment

• Rear wheel anti-lock brakes
• Driver/front passenger multistage airbags
• Front shoulder belt height adjusters
• Dual note horn

3.7L V6 "MAGNUM" ENGINE

• (STD)

• Quick Order Package 22B SXT
• 17" x 7" Argent Steel Wheels
• 17" x 8" Chrome Clad Steel Wheels
• Heavy Duty Vinyl 40/20/40 Split Bench Seat
• Cloth 40/20/40 Split Bench Seat
• 34 Gallon Fuel Tank
• AM/FM Compact Disc
• Bodyside Molding
• Carpet Floor Covering
• Front & Rear Floor Mats
• SIRIUS Satellite Radio
• Speed Control
• 40/20/40 Split Bench Seat
• Folding Rear Seat
• Mini Floor Console
• Power Heated Fold-Away Mirrors
• Remote Keyless Entry
• Power Locks
• Power Windows w/Driver One-Touch
• Bright Front Bumper
• Bright Rear Bumper
• Bright Grille
• SXT Badge
• Stain Repel Seat Fabric
• Electronically Controlled Throttle
• Next Generation Engine Controller
• Tip Start
• 4 Speakers
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Rear step bumper
• Power steering
• Passenger door bin
• Low tire pressure warning
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 2719
• Curb Weight - Rear (lbs): 2170
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 8000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2950
• Dead Weight Hitch - Max Tongue Wt. (lbs): 295
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 295
• Suspension
• Suspension Type - Front: Independent SLA
• Suspension Type - Rear: Leaf spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.21
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 0.86
• Tires
• Front Tire Order Code: TSB
• Rear Tire Order Code: TSB
• Spare Tire Order Code: TBB
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 684
• Revolutions/Mile @ 45 mph - Rear: 684
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.6
• Height, Overall (in): 74.2
• Overhang, Front (in): 39.3
• Overhang, Rear w/o bumper (in): 47.9
• Front Bumper to Back of Cab (in): 142.9
• Cab to Axle (in): 36.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 63.5
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.0
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.7
• Second Shoulder Room (in): 66.5
• Second Hip Room (in): 65.3
• Summary

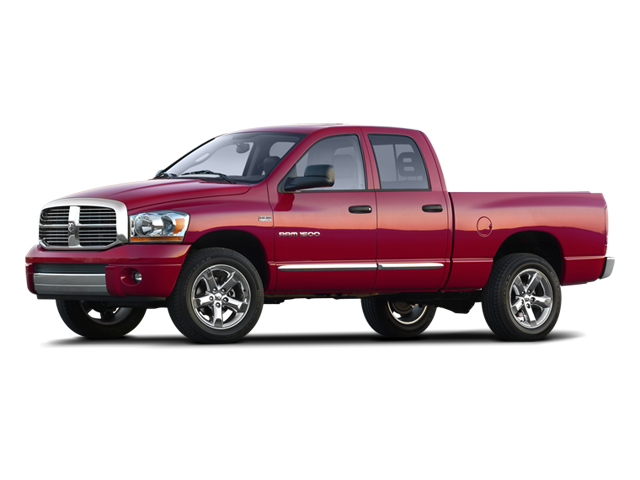

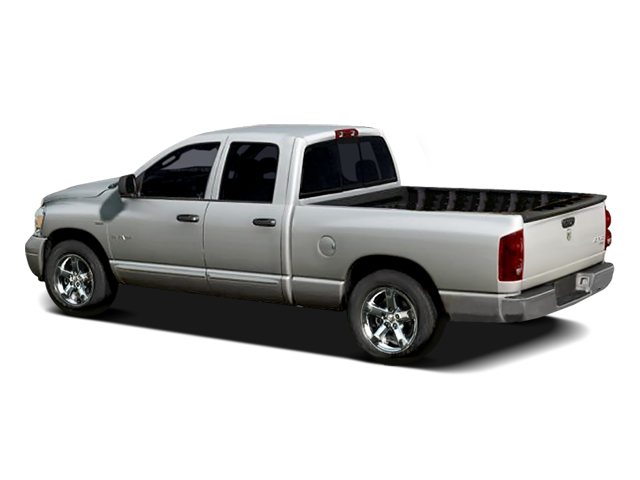

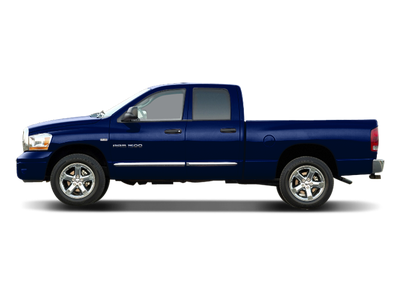

• Vehicle Name: Dodge Ram 1500
• Body Style: Quad Cab 6.3' Bed
• Body Code: 140.5" WB
